• wires

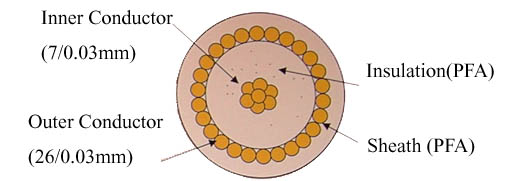

Specification :

Inner Conductor :

• Material:                                                   Sn coated Sn Cu alloy
• Conductor Nos.:                                    7
• Conductor Size:                                    0.03mm
• Diameter:                                                 0.09mm

Insulation :

• Wall Thinkness:                                    0.08mm
• Diameter:                                                0.25mm
• Material:                                                   PFA Teflon
• Color:                                                       Natural
• Dielectric Constant:                             0.51mm

Outer Conductor :

• Material:                                                   Sn coated Sn Cu alloy
• Conductor Nos.:                                    26
• Conductor Size:                                    0.03mm
• Diameter:                                                 0.31mm

Sheath :

• Outer Diameter:                                     0.38mm
• Dielectric Constant:                             2.15
• Material:                                                   PFA Teflon
• Color:                                                       Natural
